Wifi or PoE 2 Version Optional:
●WiFi version: comes with power adapter
●PoE version: transfer the power and data via LAN cable, not come with power adapter (no need)
4K 8MP WiFi / PoE Pan Tilt Speed Dome Camera
Wireless H.265 Onvif IP66 Waterproof Outdoor & Indoor Use PTZ Camera with 3.6mm Lens 4X digital zoom Video Surveillance CCTV IP Camera CamHi / CamHipro App.
4K 8.3MP Ultra-HD Resolution
An Incredible Sony IMX415 8MP 4K Super HD PTZ IP Camera, With high resolution of 8.3megapixels (3840 x 2160), Show Higher-Quality Images,for both day and night vision,you can get exactly the details you need,much clearer than 1080p and 720p.
Starvis Enhanced Night Vision
Built-in Starvis CCD IMX415 Chip, Upgrade night vision and Low light imaging, With F2.1 aperture Lens, and 3D NR (Noise Reduction), DWDR (Digital Wide Dynamic Range) technology, See clear every details even in the backlight and night.
IR Night Vision Only
This camera not support flash light (spotlight), please set the night vision mode as "normal" in CamHi APP (in CamHipro APP it's "Ordinary".
Pan Tilt 4X Digital Zoom
This PTZ camera can rotate 360° horizontally(Pan) and 120° vertically(Tilt). Set different preset locations, every corner covered. The WiFi IP camera with 4x digital zoom, you can enlarge the image to see more details.
AI Smart Humanoid Detect and Humanoid Tracking
Quickly find humanoid targets and auto tracking it and immediately send a notification to your phone only when humanoid triggered alarm, which help you filter out the annoying false alerts such as cars and trees.
Customizable Zones and Voice Alarm
Set motion detection zones to focus on important areas like doors or windows. The camera automatically broadcost your voice when detect trigger alarm, when you are sleeping or meeting or enjoy happy time with family, let such a smart camera guard your home !
Two Way Audio
The built-in ultra-responsive microphone allows you not only see but also hear, get in Intercom mode, you'll have smooth stable conversations through your mobile App wherever you are. so you can send commands to your pet, or scare off unwanted guests.
Support Cruise and Scan
Preset your watch point, start patrol, the camera become your patrolman.
Support 255 Presets
Support 3 Guard tours
Support 14 Cruise points
Support A-B scan
Support 360° Pan scan
Multiple Alert Send To Your Mobile
Support App push, Email alert, FTP alert, With the motion detection features, real-time alerts will send to your phone to avoid property loss, Once you active the motion detection function, the security camera would snapshot and record video automatically.
IP66 Waterproof Metal Alluminum Body
Compared to other plastic camera, this PTZ camera is full metal alluminum alloy body, can work in 55℃131℉ high temperature and -40℃-40℉ cold weather, waterproof level up to IP66, is stronger to withstand rough weather and Vandal Resistant.
SD Card and Onvif recorder storage
ZYsecurity CamHi security camera supports SD card storage up to 128GB. also it support onvif recorder, with smart H.265 technology,it could save over 5 times more memory space than other cameras.
【WiFi Version】AP Hotspot & Multiple Connection Method
◉Enhansed 5dB router level Full copper core antenna, 10-15meters AP hotspot.
◉The camera can connect by 2.4/5G dual band wifi and wired lan cable.
(This function only for WiFi Version)
【PoE Version】 Power Over Ethernet, Easy Installation
Thanks to the power over Ethernet (PoE) technology, this outdoor camera can transmit videos and get power simultaneously via only one network cable. Easy plug-and-play for a reliable connection.
(this function only for poe version)
Plug & Play - Quick and easy setup
ZYsecurity IP camera comes with a QR code that can be scanned with a mobile device using our free app (iOs and Android). This wireless camera can be quickly and easily set up.
Support Multi-Users and Devices
Supports multi-users and multi-devices view simultaneously. You could share your camera with family or your friends. After sharing, they will be able to access the same camera simultaneously,so that you could enjoy the great moments together.
Playback Very Easy
You can playback or download the recorded video from mobile App, The camera supports pre-record and post-record. When the SD card is full, it will automatically cover the old video.
PoE Camera Packing List
1x PoE Camera
1x English User Manual
1x CCTV Sign
1x Screw bag tools
1x Memory Card (option order)
WiFi Camera Packing List
1x WiFi Camera
1x Power Adapter
1x English User Manual
1x CCTV Sign
1x Screw bag tools
1x Memory Card (option order)
Specification
Mode |
Name and Mode |
4K 8MP WIFI / POE IP PTZ DOME Security Camera |
AV-WF05AR-8M (for WIFI Camera) / AV-WF05AR-POE (for POE Camera) |
Camera |
Processor |
Mstar SSC338Q |
Image Sensor |
1/2.8" SONY IMX415 CMOS (8MP) / 1/2.8" SONY IMX335 CMOS (5MP) |
Effective Pixels |
8.0 Mpixes |
Min. Illumination |
Color: 0.001Lux@F1.6; B/W: 0.001Lux@F1.6, 0Lux with IR |
Lens |
8MP 3.6mm Lens (4X Digital Zoom) |
Day/Night |
Auto ICR |
S/N Ratio |
≥72dB |
WDR |
D-WDR (≥128dB) |
Noise Reduction |
DNR,3DNR |
Shutter speed |
1/2 - 1/20,000s |
AGC |
Auto / Manual |
White balance |
AUTO, ATW, Indoor, Outdoor, Manual |
BLC |
ON/OFF |
OSD Display |
Camera Name,Data&Time |
Video&Audio |
Video Compression |
H.264/H.265/H.265+ |
Streams |
Dual streams |
Frame Rate |
Main stream: |
3840*2160@20fps; |
2592*1944/2560*1440/1080P/960P/720P/D1@30fps |
Sub-stream: |
1280*720/800x600/800x448/CIF@30fps |
Bitrate |
CBR/VBR, bitrate:32Kbps~10Mbps variable |
Audio Compression |
G711U/G711A/AAC |
Audio I/O |
Built-in MIC and Speaker |
Alarm |
Motion detection, Humanoid Detection, Vehicle Detection, Pet Detection |
Network |
Network |
WIFI 802.11 b/g/n, 10/100M Base-TX Ethernet, RJ45 Connector |
P2P |
Android,IOS |
Protocols |
TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P |
Motion detect |
Support |
Privacy Zone Masking |
Support |
Onvif |
Onvif 2.6 |
IR Parameters |
Luminary |
Array Infrared LEDs |
Night vision distance |
20-30Meters |
Lamp control |
Auto, Manual |
Dome Features |
Pan Range |
355° rotation |
Tilt Range |
0~90°(Auto flip) |
Manual pan speed |
0~40º/S |
Manual tilt speed |
0~30°/S |
Preset speed |
40°/S |
Actual preset Accuracy |
±0.10° |
Preset points |
255 |
Patrol |
4 patrols |
Pattern |
1 |
Left and right limit scan |
1 |
Pan scan |
1 |
Park Action |
Preset / Patrol / Pattern / Pan scan |
Power-off Memory: |
Support |
General |
Power Supply |
DC12V 2A |
Consumption |
<60W |
Work temperature |
External–35℃~55℃ |
Work Humidity |
0%~90% (Non condensing) |
Protection |
IP66 |
Weight |
0.885kg |
Manage your camera from CamHipro App:
Manage your camera from CamHipro App:
First time connection, please press the RESET button in the equipment base for 10s to restart camera.
1:Download "CamHi" or "Camhipro" from the iPhone App Store or Google PlayStore.Or contact us to get all the software.
2:Enter the camera UID, user name and password: admin
Browser view and setting
Use the local area network.
Use a browser to log in to the camera's IP address. It is more convenient to set up various functions of the camera on the computer.
The functions displayed by the browser are more comprehensive. It is recommended to use the computer system's own IE browser

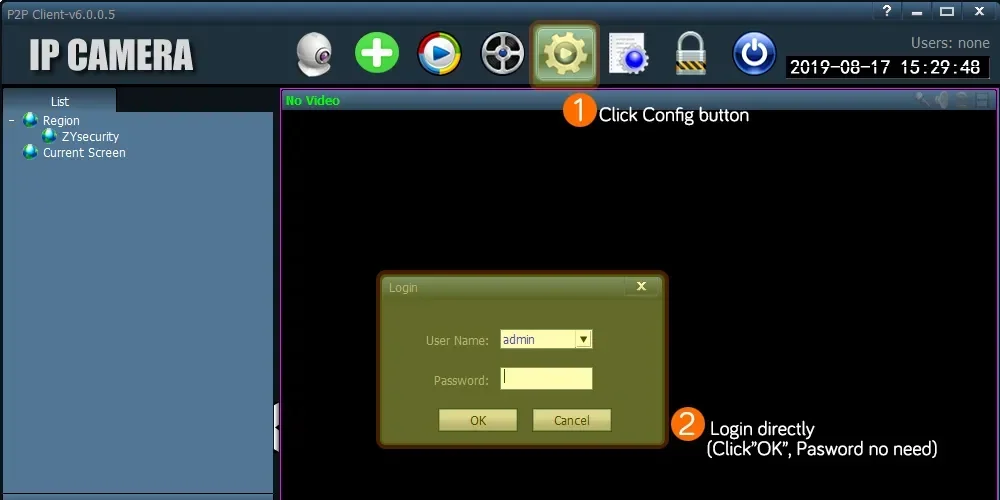

PC client CMS Software
Used for centralized management of single or multiple cameras
Both can be used within the local area network. Can also be accessed remotely
