4K 8MP Wifi Dome PTZ IP Camera Outdoor Human/Vehicle Detection Auto Tracking Security Cameras 2-way Audio Wireless Indoor Camera

Regular price $217.28 USD
Sale price $217.28 USD Regular price
Sale Sold out
Sensor Size
Plug Type
Focus
  • Vendor:

    DigitalOtoban.com

Description

SPECIFICATIONS

Brand Name: Avieyes

Origin: Mainland China

High Definition: 8.0 Megapixels

Supported Operating Systems: Windows 7

Supported Operating Systems: Mac OS

Supported Operating Systems: Windows 10

Lens (mm): 3.6mm

Style: Dome Camera

Connectivity: WIFI

Installation: Normal

Minimum Illumination(Lux): 0.0001lux

Scene: Indoor and outdoor

Color Night Vision: no

Megapixels: 8MP

Storage: 128G

Video Compression Format: H.264

Video Compression Format: H.265

IR Distance(m): 25meters

Certification: CE

Certification: FCC

Certification: RoHS

Dimensions (L x W x D)(mm): As picture

Color: WHITE

Power Mode: Mains Electricity

Alarm Action: FTP Photo

Alarm Action: Email Photo

Alarm Action: Local Alarm

is_customized: Yes

Model Number: AV-WF05AR / AV-MG05AR

Supported Mobile Systems: Android

Supported Mobile Systems: IOS

Smart home platform: other

AI Functions: Smart Tracking

IP Rating: IP66

Special Features: Waterproof / Weatherproof

TF Card: 128G TF Card

Digital Zoom: 4X

Power Supply(V): DC 12V

Audio Output: Two Way Audio

Power Consumption(W): 12W

Sensor: CCD

Sensor Brand: Sony/索尼

Shell Material: Metal

Power Supply: Normal

Viewing Angle : 360°

Optical Zoom: other

Movement Range(Pan): 0°-360°

Humanoid recognition: Support

Humanoid Auto Tracking: Support

Detection Area: Masking Detect Zone

Casing Material: Metal alumminum Alloy

Audible Alarm: Support

Connection Method: 2.4G Wifi / LAN / PoE

Manage Device: Mobile App, CMS, Browser

Storage: TF / SD Card

Onvif: Yes

App: CamHi, CamHipro

Name 1: 4k dome wifi camera

Name 2: 4K PTZ dome camera

Name 3: 4k dome ip camera

Name 4: 8mp wifi dome camera

Name 5: 4k 8mp wifi dome ptz camera

Name 6: 4k 8mp poe dome ptz camera

Name 7: 4k ptz poe camera

Name 8: 4k poe dome camera

Name 9: camera poe 8mp

Name 10: speed dome 4k






Wifi or PoE 2 Version Optional:

●WiFi version: comes with power adapter
●PoE version: transfer the power and data via LAN cable, not come with power adapter (no need)

4K 8MP WiFi / PoE Pan Tilt Speed Dome Camera

Wireless H.265 Onvif IP66 Waterproof Outdoor & Indoor Use PTZ Camera with 3.6mm Lens 4X digital zoom Video Surveillance CCTV IP Camera CamHi / CamHipro App.

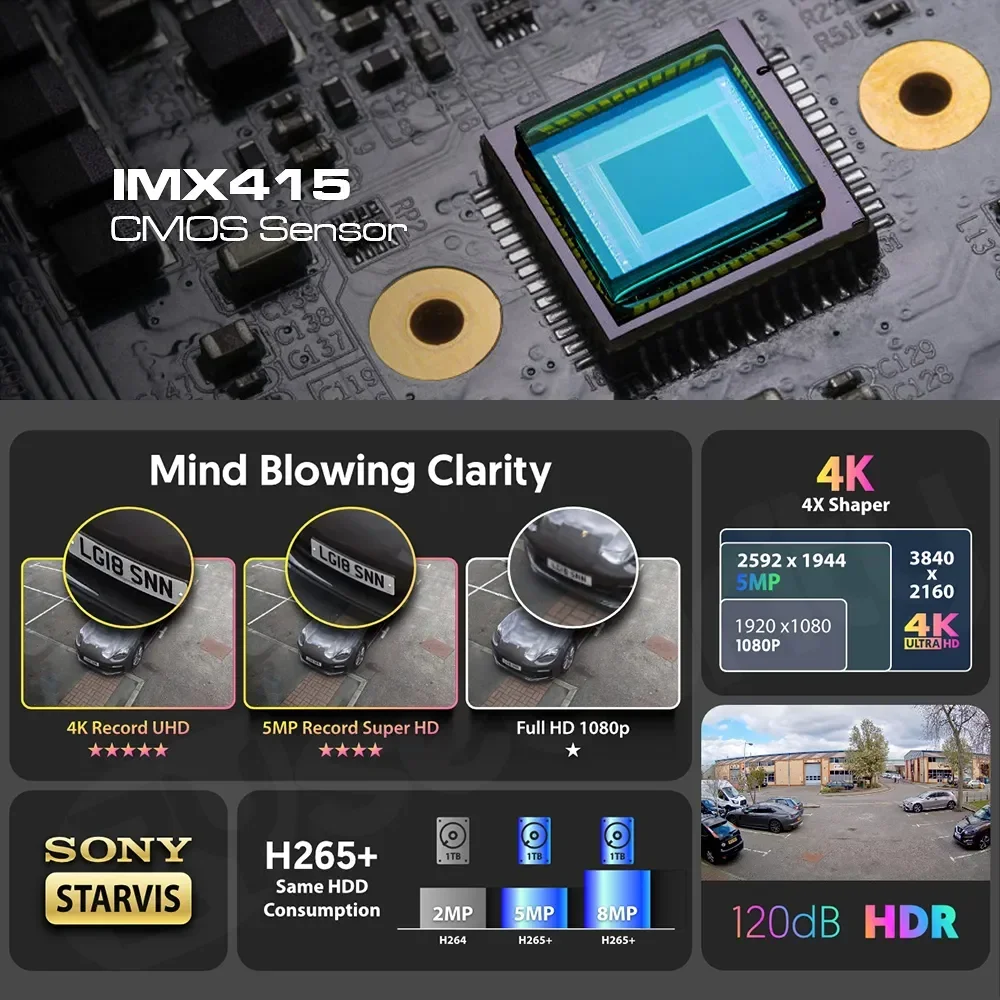

4K 8.3MP Ultra-HD Resolution

An Incredible Sony IMX415 8MP 4K Super HD PTZ IP Camera, With high resolution of 8.3megapixels (3840 x 2160), Show Higher-Quality Images,for both day and night vision,you can get exactly the details you need,much clearer than 1080p and 720p.

Starvis Enhanced Night Vision

Built-in Starvis CCD IMX415 Chip, Upgrade night vision and Low light imaging, With F2.1 aperture Lens, and 3D NR (Noise Reduction), DWDR (Digital Wide Dynamic Range) technology, See clear every details even in the backlight and night.

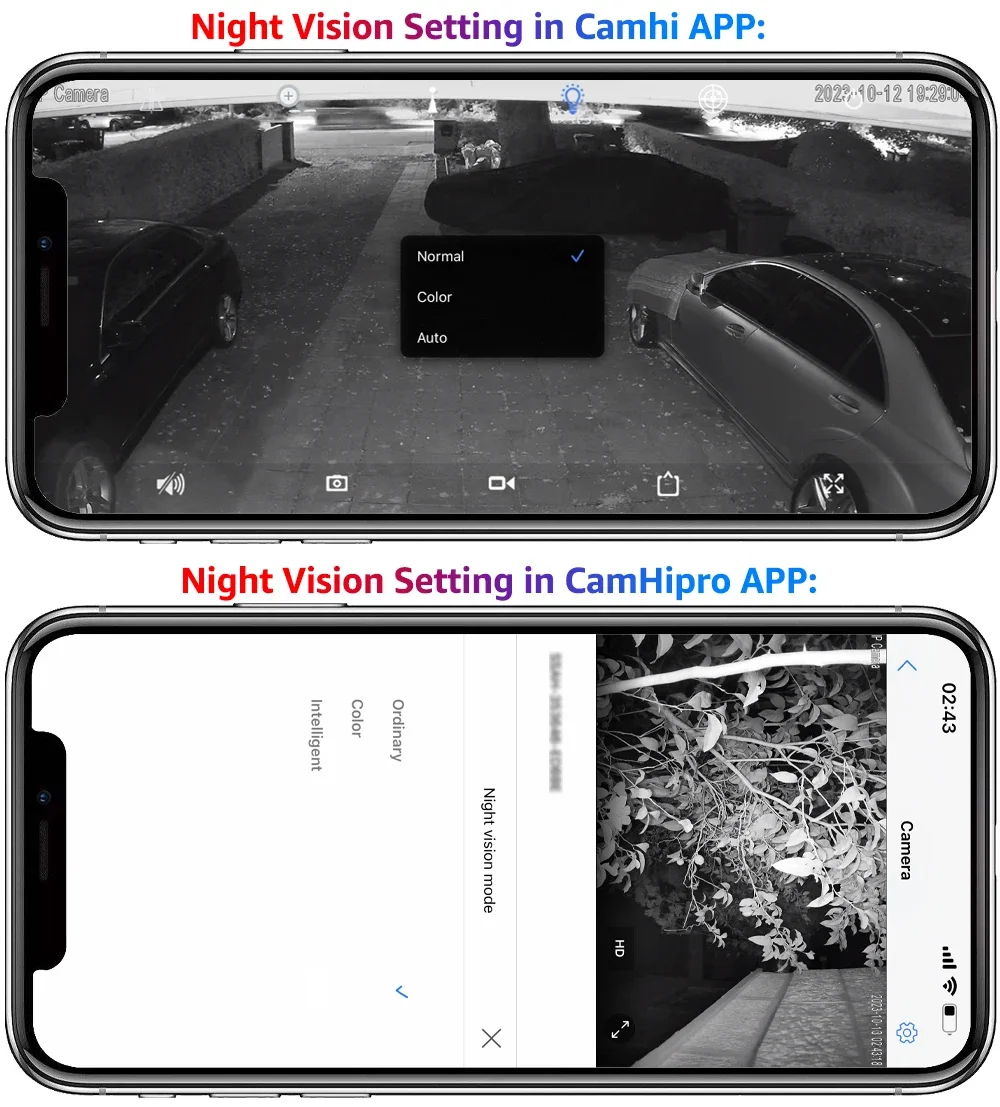

IR Night Vision Only

This camera not support flash light (spotlight), please set the night vision mode as "normal" in CamHi APP (in CamHipro APP it's "Ordinary".

Pan Tilt 4X Digital Zoom

This PTZ camera can rotate 360° horizontally(Pan) and 120° vertically(Tilt). Set different preset locations, every corner covered. The WiFi IP camera with 4x digital zoom, you can enlarge the image to see more details.

AI Smart Humanoid Detect and Humanoid Tracking

Quickly find humanoid targets and auto tracking it and immediately send a notification to your phone only when humanoid triggered alarm, which help you filter out the annoying false alerts such as cars and trees.

Customizable Zones and Voice Alarm

Set motion detection zones to focus on important areas like doors or windows. The camera automatically broadcost your voice when detect trigger alarm, when you are sleeping or meeting or enjoy happy time with family, let such a smart camera guard your home !

Two Way Audio

The built-in ultra-responsive microphone allows you not only see but also hear, get in Intercom mode, you'll have smooth stable conversations through your mobile App wherever you are. so you can send commands to your pet, or scare off unwanted guests.

Support Cruise and Scan

Preset your watch point, start patrol, the camera become your patrolman.

Support 255 Presets
Support 3 Guard tours
Support 14 Cruise points
Support A-B scan
Support 360° Pan scan

Multiple Alert Send To Your Mobile

Support App push, Email alert, FTP alert, With the motion detection features, real-time alerts will send to your phone to avoid property loss, Once you active the motion detection function, the security camera would snapshot and record video automatically.

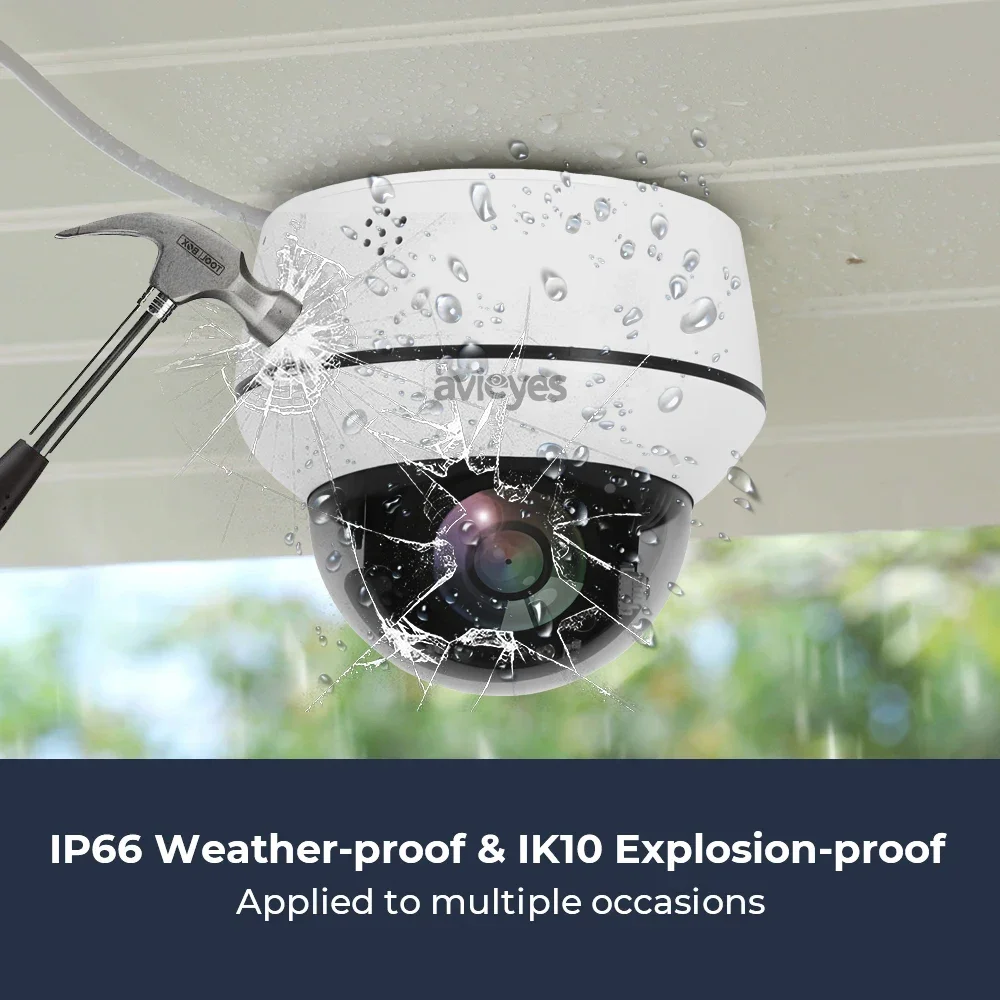

IP66 Waterproof Metal Alluminum Body

Compared to other plastic camera, this PTZ camera is full metal alluminum alloy body, can work in 55℃131℉ high temperature and -40℃-40℉ cold weather, waterproof level up to IP66, is stronger to withstand rough weather and Vandal Resistant.

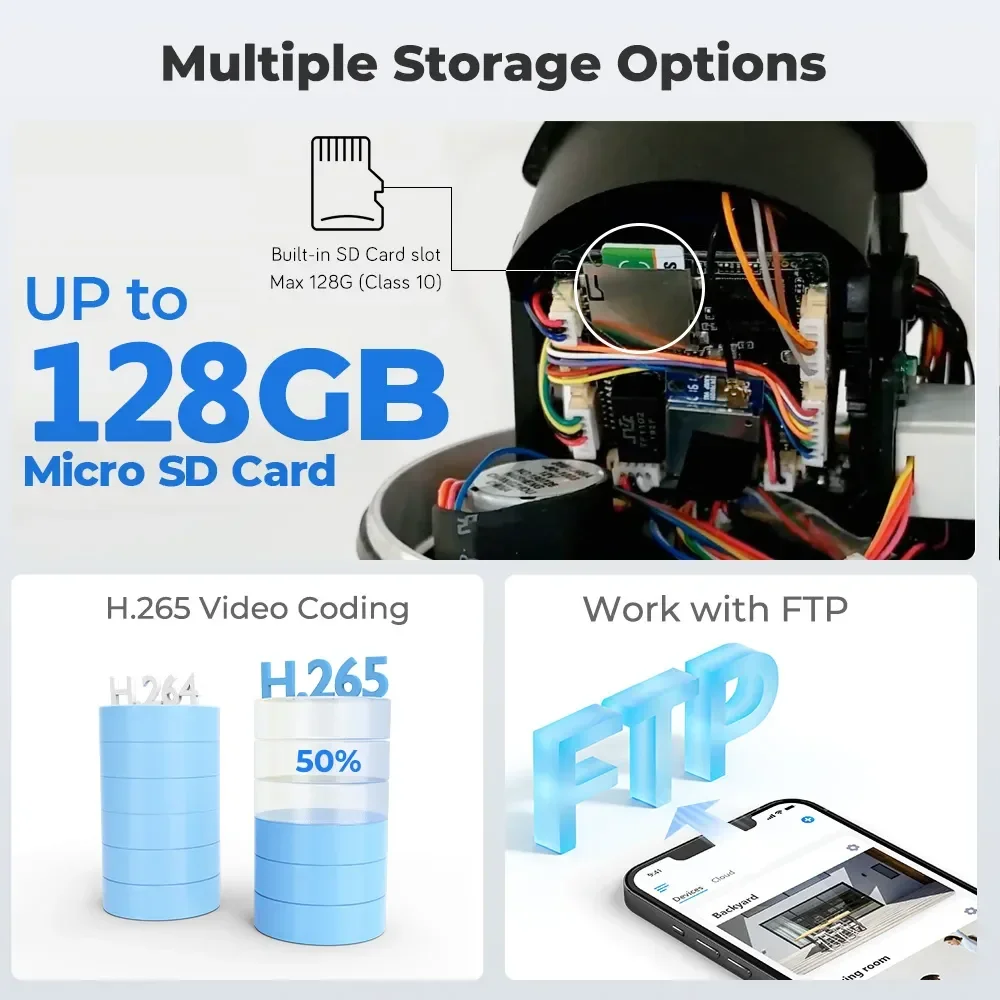

SD Card and Onvif recorder storage

ZYsecurity CamHi security camera supports SD card storage up to 128GB. also it support onvif recorder, with smart H.265 technology,it could save over 5 times more memory space than other cameras.

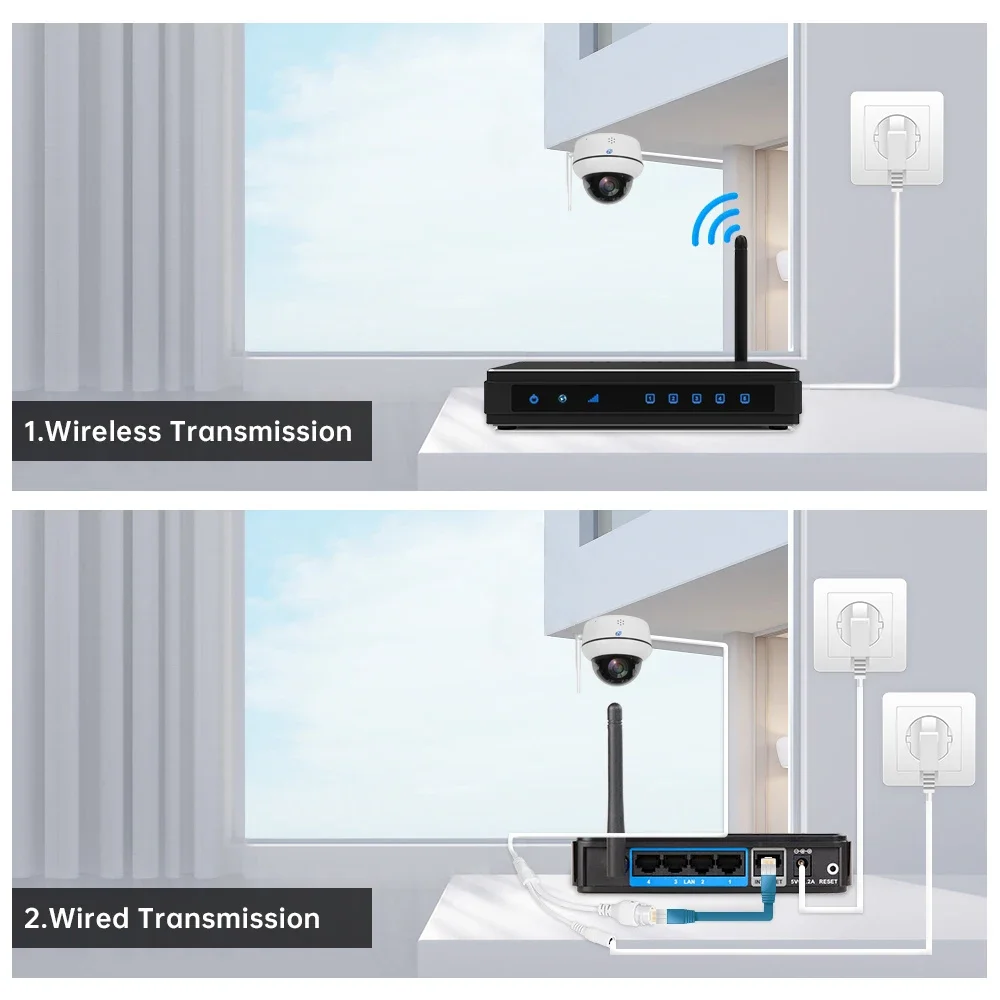

【WiFi Version】AP Hotspot & Multiple Connection Method

◉Enhansed 5dB router level Full copper core antenna, 10-15meters AP hotspot.
◉The camera can connect by 2.4/5G dual band wifi and wired lan cable.

(This function only for WiFi Version)

【PoE Version】 Power Over Ethernet, Easy Installation

Thanks to the power over Ethernet (PoE) technology, this outdoor camera can transmit videos and get power simultaneously via only one network cable. Easy plug-and-play for a reliable connection.

(this function only for poe version)

Plug & Play - Quick and easy setup

ZYsecurity IP camera comes with a QR code that can be scanned with a mobile device using our free app (iOs and Android). This wireless camera can be quickly and easily set up.

Support Multi-Users and Devices

Supports multi-users and multi-devices view simultaneously. You could share your camera with family or your friends. After sharing, they will be able to access the same camera simultaneously,so that you could enjoy the great moments together.

Playback Very Easy

You can playback or download the recorded video from mobile App, The camera supports pre-record and post-record. When the SD card is full, it will automatically cover the old video.

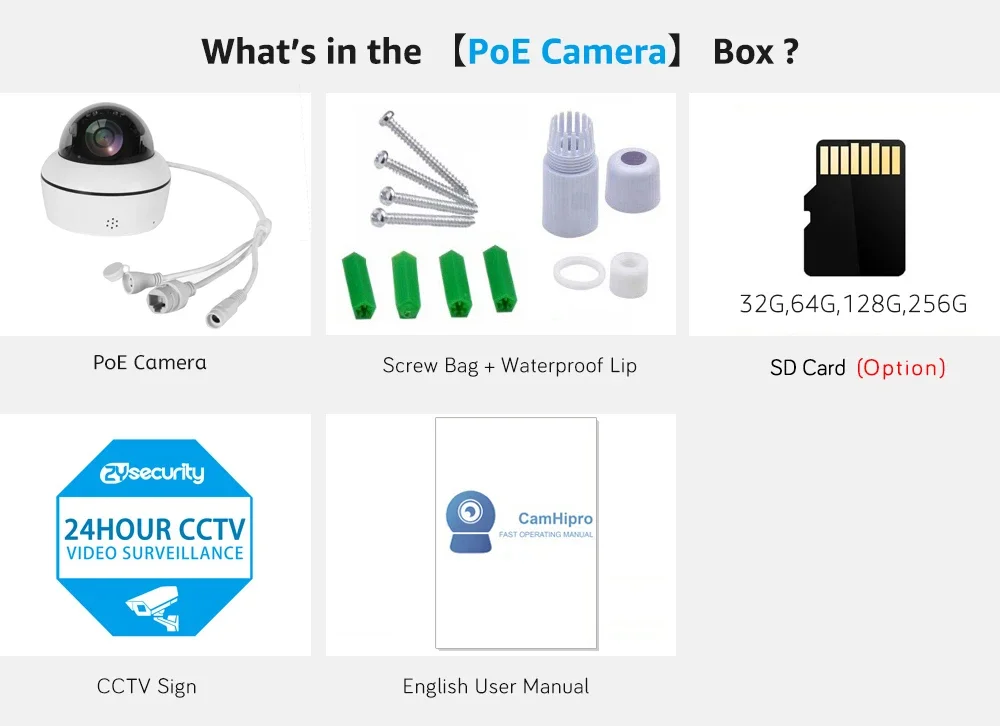

PoE Camera Packing List

1x PoE Camera
1x English User Manual
1x CCTV Sign
1x Screw bag tools
1x Memory Card (option order)

WiFi Camera Packing List

1x WiFi Camera
1x Power Adapter
1x English User Manual
1x CCTV Sign
1x Screw bag tools
1x Memory Card (option order)



Specification

Mode

Name and Mode

4K 8MP WIFI / POE IP PTZ DOME Security Camera

AV-WF05AR-8M (for WIFI Camera) / AV-WF05AR-POE (for POE Camera)

Camera

Processor

Mstar SSC338Q

Image Sensor

1/2.8" SONY IMX415 CMOS (8MP) / 1/2.8" SONY IMX335 CMOS (5MP)

Effective Pixels

8.0 Mpixes

Min. Illumination

Color: 0.001Lux@F1.6; B/W: 0.001Lux@F1.6, 0Lux with IR

Lens

8MP 3.6mm Lens (4X Digital Zoom)

Day/Night

Auto ICR

S/N Ratio

≥72dB

WDR

D-WDR (≥128dB)

Noise Reduction

DNR,3DNR

Shutter speed

1/2 - 1/20,000s

AGC

Auto / Manual

White balance

AUTO, ATW, Indoor, Outdoor, Manual

BLC

ON/OFF

OSD Display

Camera Name,Data&Time

Video&Audio

Video Compression

H.264/H.265/H.265+

Streams

Dual streams

Frame Rate

Main stream:

3840*2160@20fps;

2592*1944/2560*1440/1080P/960P/720P/D1@30fps

Sub-stream:

1280*720/800x600/800x448/CIF@30fps

Bitrate

CBR/VBR, bitrate:32Kbps~10Mbps variable

Audio Compression

G711U/G711A/AAC

Audio I/O

Built-in MIC and Speaker

Alarm

Motion detection, Humanoid Detection, Vehicle Detection, Pet Detection

Network

Network

WIFI 802.11 b/g/n, 10/100M Base-TX Ethernet, RJ45 Connector

P2P

Android,IOS

Protocols

TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P

Motion detect

Support

Privacy Zone Masking

Support

Onvif

Onvif 2.6

IR Parameters

Luminary

Array Infrared LEDs

Night vision distance

20-30Meters

Lamp control

Auto, Manual

Dome Features

Pan Range

355° rotation

Tilt Range

0~90°(Auto flip)

Manual pan speed

0~40º/S

Manual tilt speed

0~30°/S

Preset speed

40°/S

Actual preset Accuracy

±0.10°

Preset points

255

Patrol

4 patrols

Pattern

1

Left and right limit scan

1

Pan scan

1

Park Action

Preset / Patrol / Pattern / Pan scan

Power-off Memory:

Support

General

Power Supply

DC12V 2A

Consumption

<60W

Work temperature

External–35℃~55℃

Work Humidity

0%~90% (Non condensing)

Protection

IP66

Weight

0.885kg

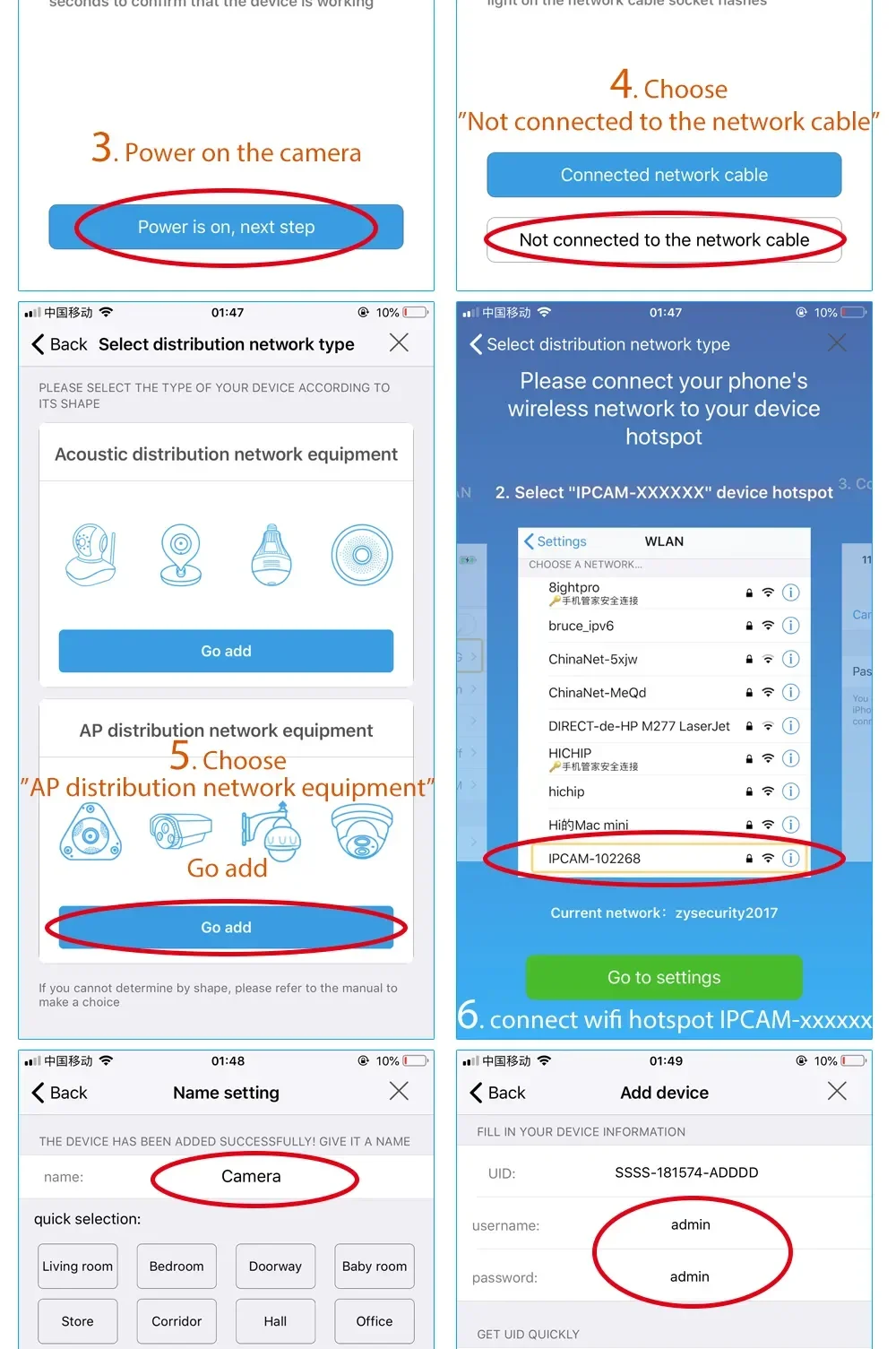

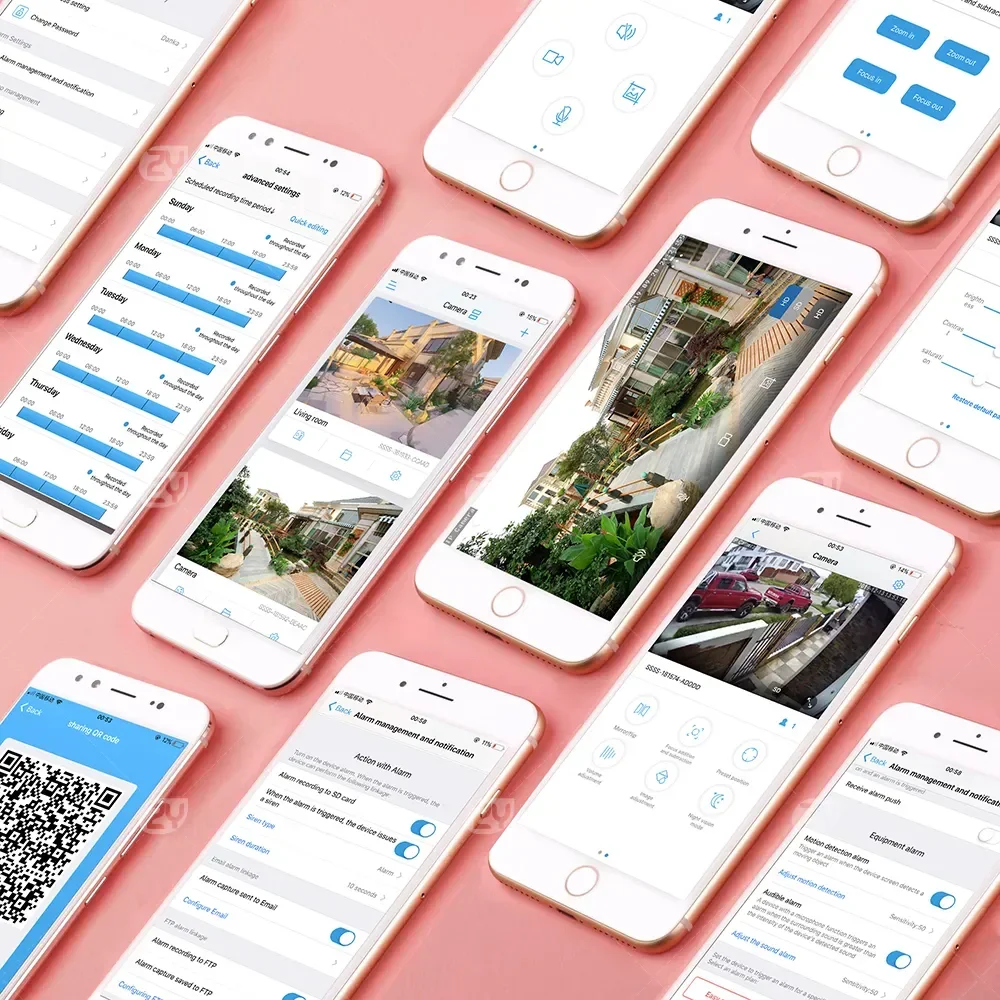

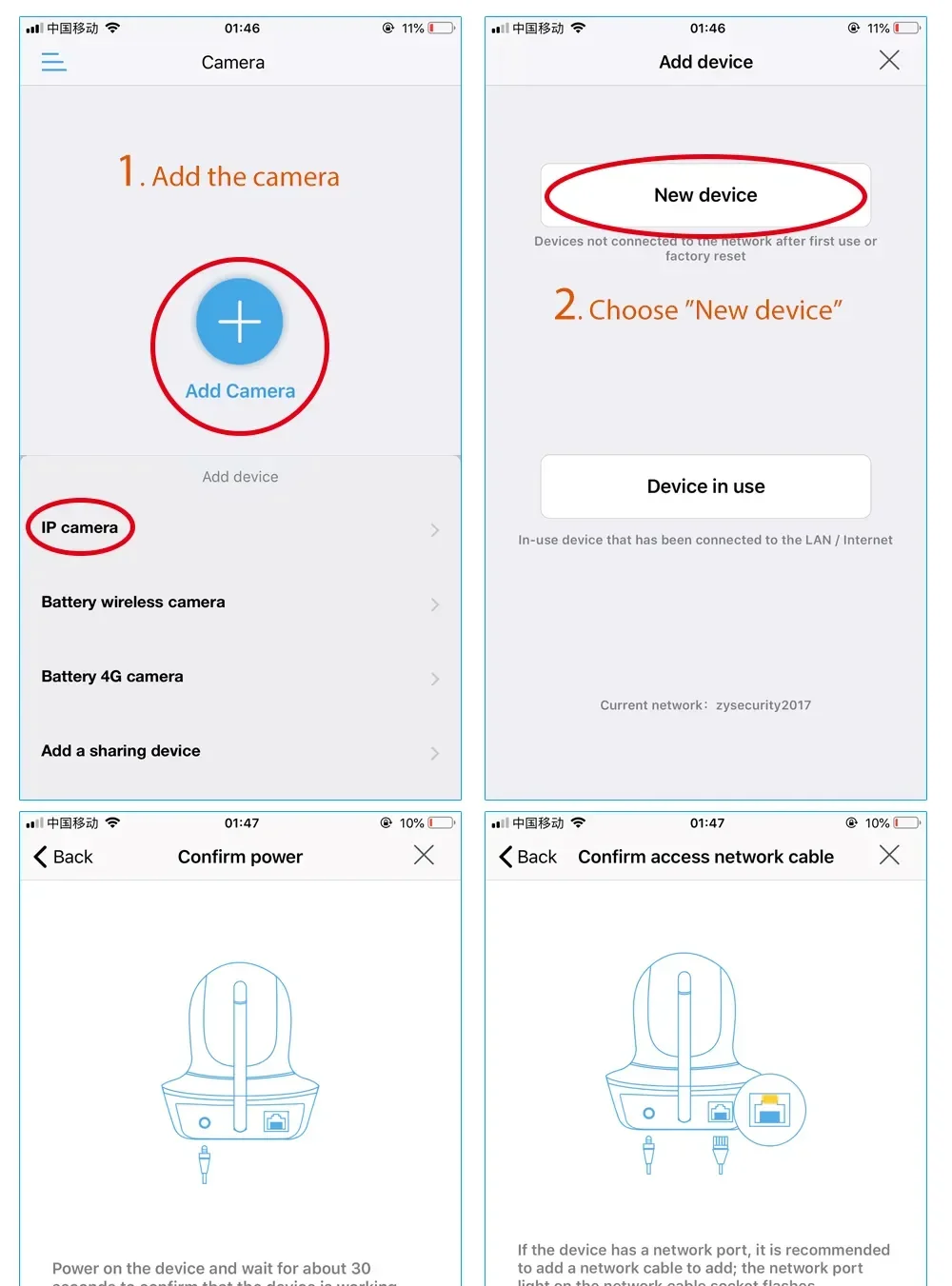

Manage your camera from CamHipro App:

Manage your camera from CamHipro App:

First time connection, please press the RESET button in the equipment base for 10s to restart camera.

1:Download "CamHi" or "Camhipro" from the iPhone App Store or Google PlayStore.Or contact us to get all the software.
2:Enter the camera UID, user name and password: admin

Browser view and setting

Use the local area network.
Use a browser to log in to the camera's IP address. It is more convenient to set up various functions of the camera on the computer.
The functions displayed by the browser are more comprehensive. It is recommended to use the computer system's own IE browser

PC client CMS Software

Used for centralized management of single or multiple cameras
Both can be used within the local area network. Can also be accessed remotely
