1、product selection

XKC-Y28-NO/NC products are specially developed for non-metallic pipes (pipe outer diameter D≥11MM) or flat container liquid level detection. They are relay normally open output and relay normally closed output;

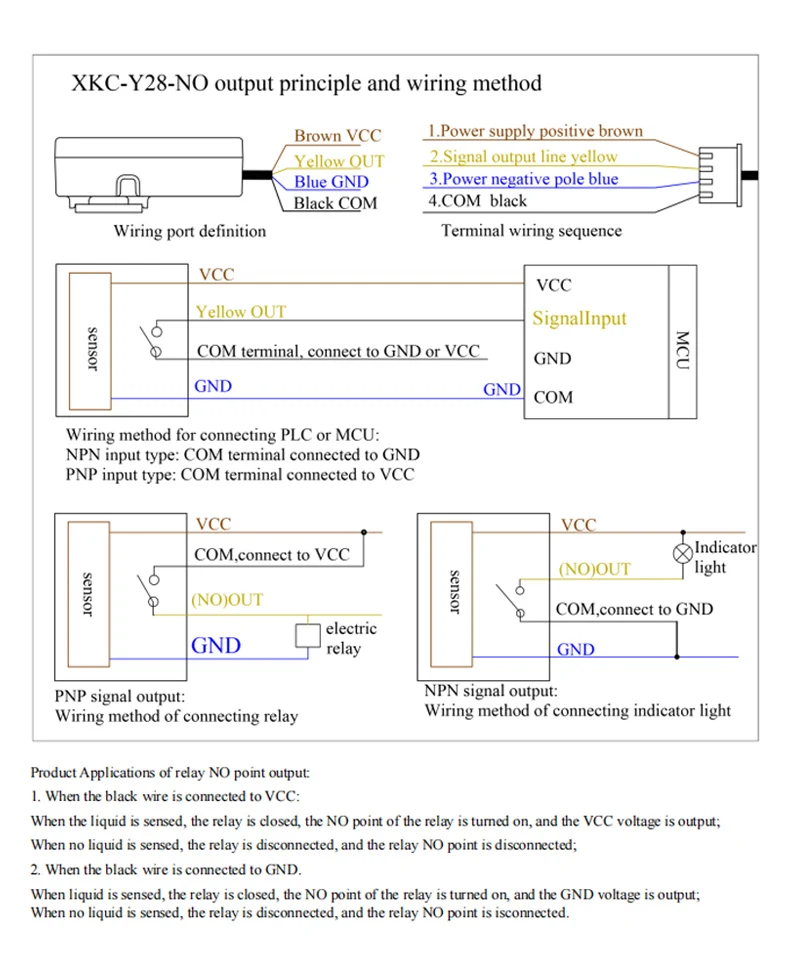

Normally open output interface —— Model: XKC-Y28-NO (DC 5V), (DC 12V), (DC 24V)
Normally closed output interface —— Model: XKC-Y28-NC (DC 5V), (DC 12V), (DC 24V)

2、Product Features

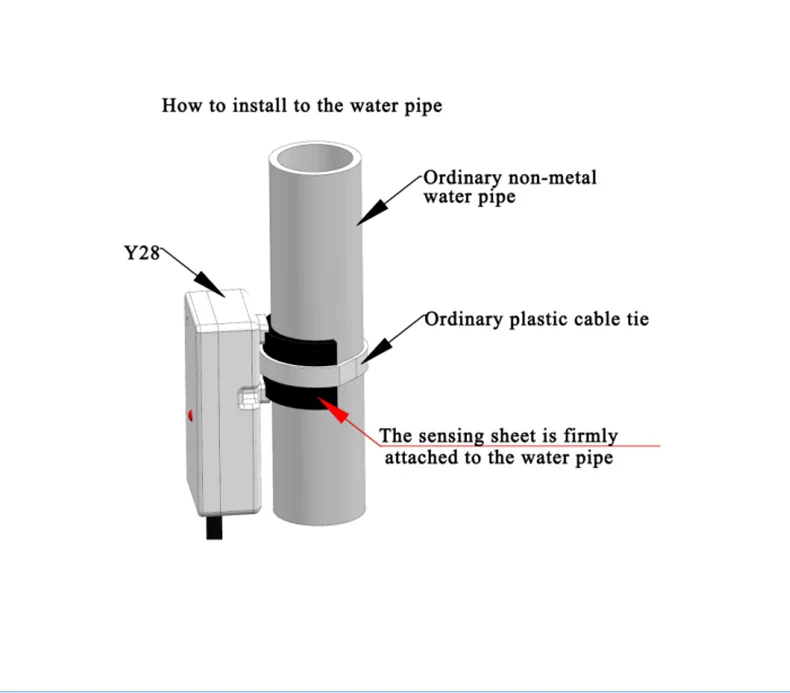

1. XKC-Y28-NO/NC sensor, suitable for non-metallic pipes (pipe outer diameter D≥11MM) or flat containers without direct contact with liquids,
It will not be corroded by strong acids or alkalis and other corrosive liquids, and will not be affected by scale or other debris. It can be completed to detect whether there is liquid inside the container or pipeline.

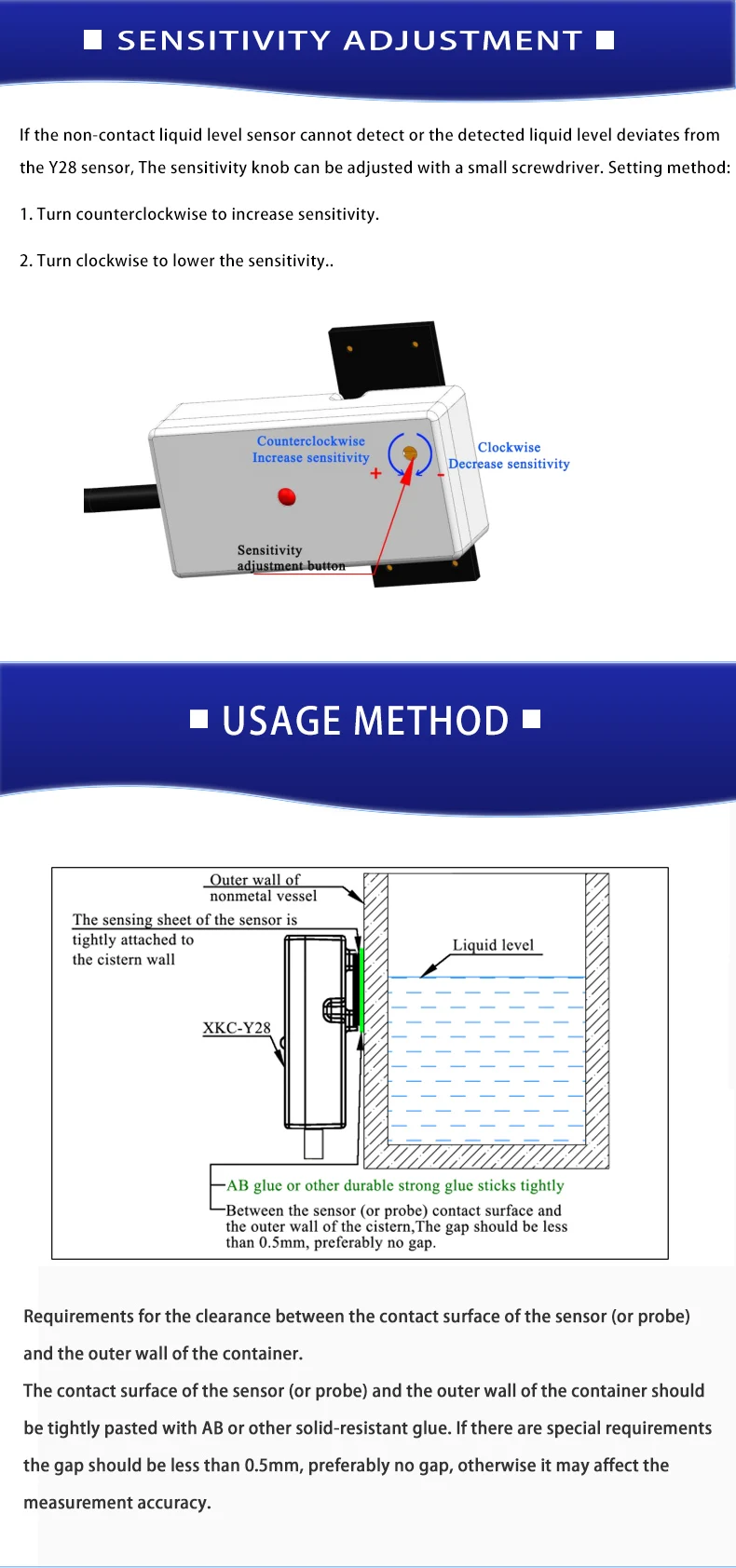

2. Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, can realize multi-point series connection.
3. The detection is accurate and stable, and the boiling water level can be detected.
4. Pure electronic circuit structure, non-mechanical working mode, stable performance and durability.
5. High stability, high sensitivity, strong anti-interference ability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference, to be compatible with all 5V, 12V, 24V power adapters on the market.
6. Strong compatibility, penetrating various non-metallic container pipes, such as plastic, glass, ceramics and other containers, the induction pipe wall thickness can reach 20mm; suitable for all kinds of curved, arc, cylindrical containers or pipes Liquid level detection.
7. The voltage can be selected (5V, 12V, 24V), suitable for connecting various circuits and product applications.
